DIAGRAMS

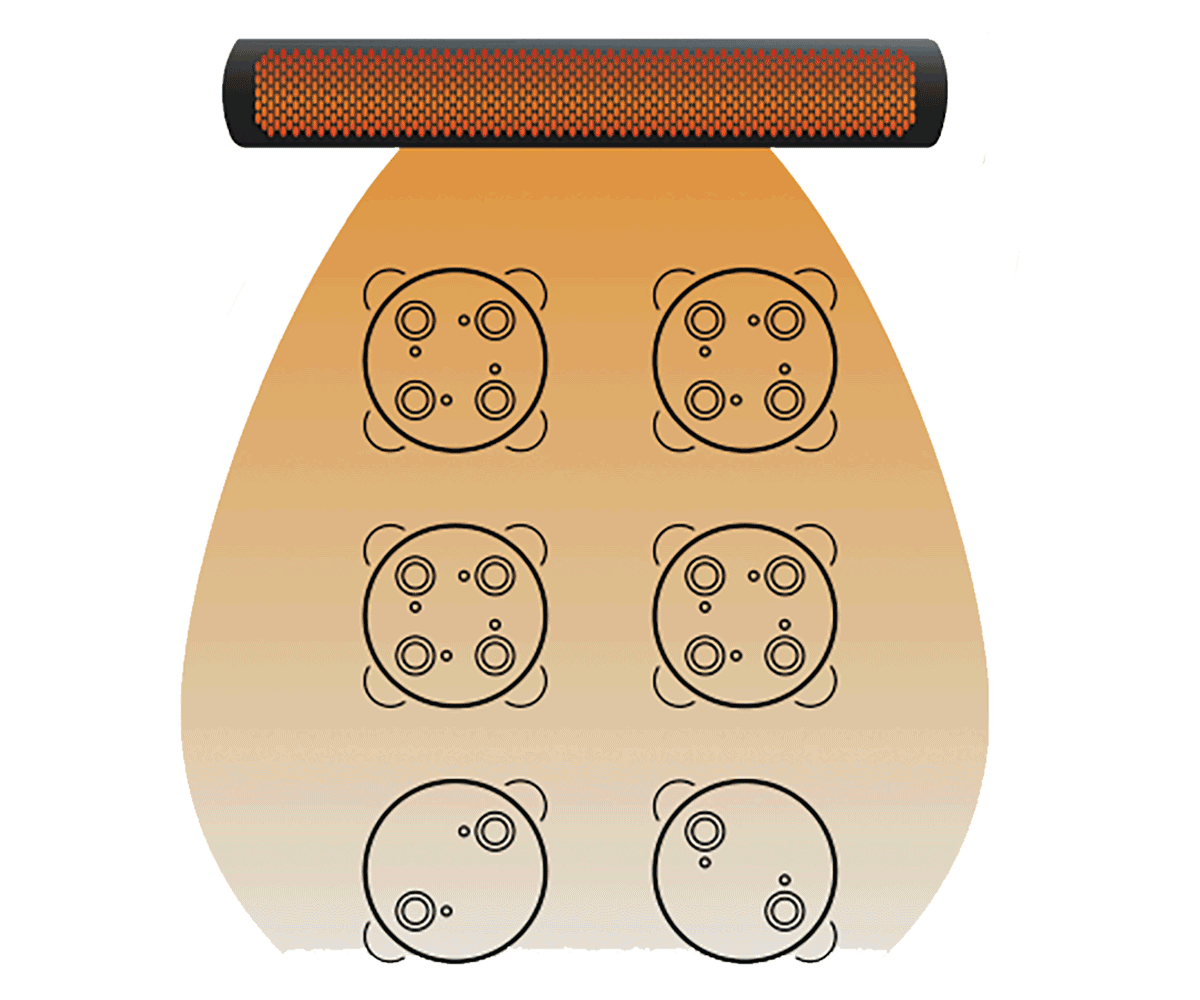

The Tungsten Electric Outdoor Heater 6000 series heats approximately 160sqft with 6KW heating power. Available in both black and white. To heat a 10'x10' area, heater should be at least 9' high from the ground.

TUNGSTEN ELECTRIC OUTDOOR HEATER 6000 SERIES

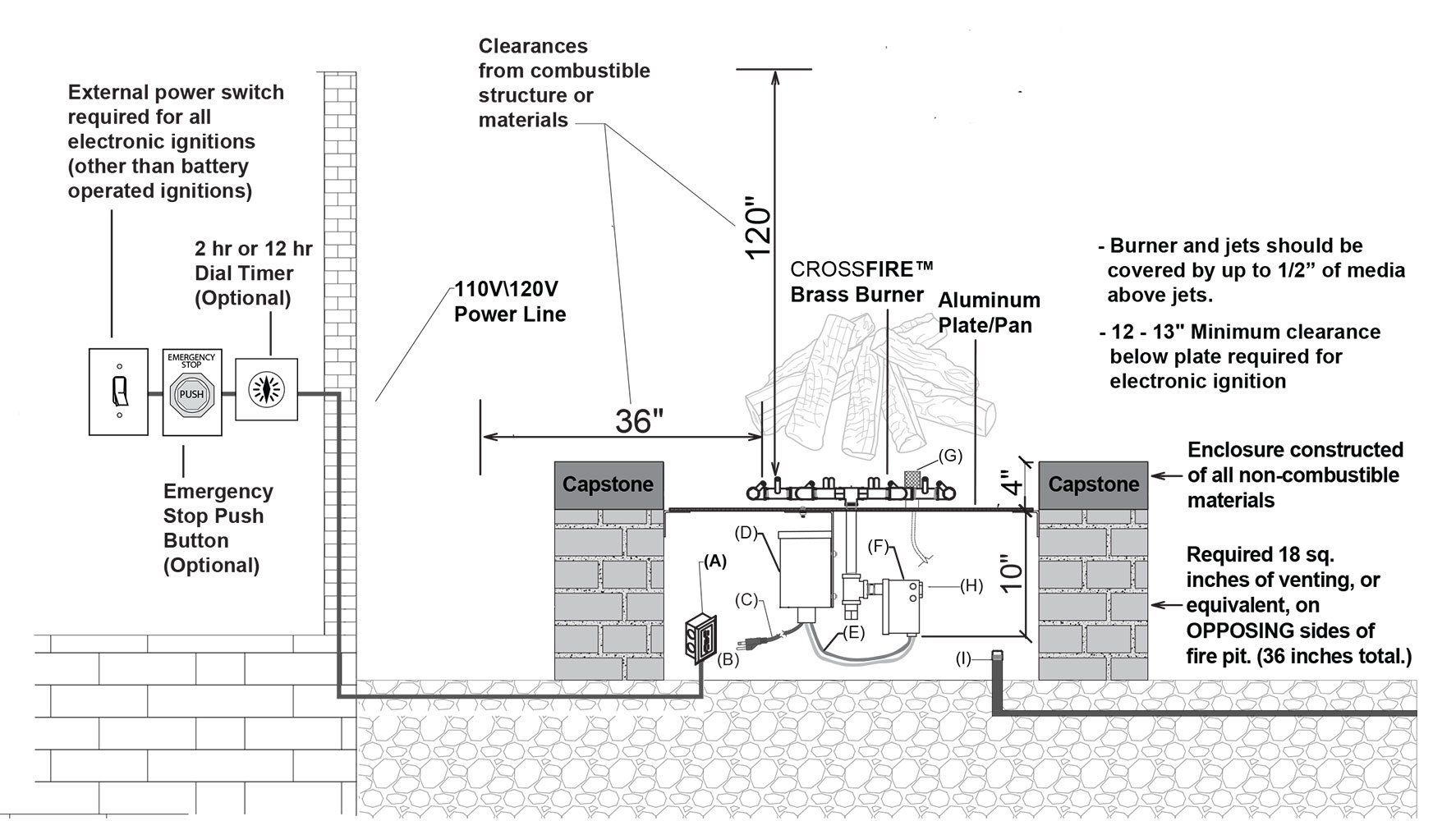

Fire Pit Cavity Components

(A) GFCI Outlet  (B) Location for remote receiver (optional)  (C) Pigtail plug included for easy installation  (D) Electronics Box (Houses 120V - 24V Transformer)  (E) 24V Power from Transformer to Gas Valve  (F) Gas Valve / Control Box  (G) Pilot Assembly  (H) Gas Valve Supply IN  (I) Gas Stub from Source

CROSSFIRE ELECTRONICS & CLEARANCES DIAGRAM

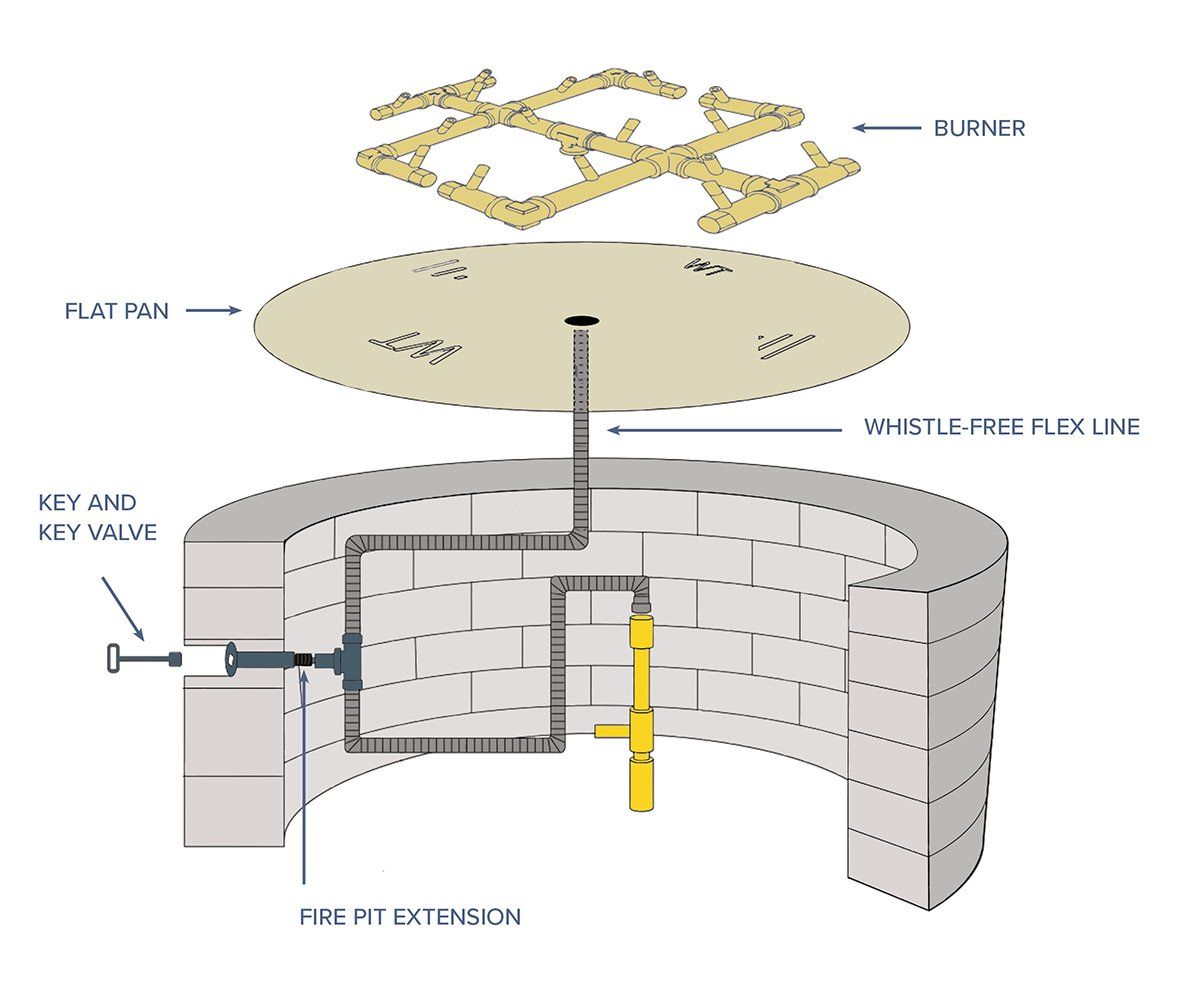

FIRE PIT GAS CONVERSION KIT DIAGRAM

GAS CONVERSION KITS

Each kit includes:

• Crossfire 180K BTU Burner
• Pan
• Push Button Spark Ignition Kit
• Key Valve Kit
• Lava Rock
• Paver Bracket
