Converting Your Fire Pit To Gas

Outdoor Fire Features:

Wood-Burning or Gas?

Having your outdoor fire feature be wood-burning or gas is one of the first questions you should answer while still in the design stage of your outdoor living project with your contractor.  While all of our wood-burning fire pits and outdoor fireplaces can be plumbed for and converted to gas, it is easier and less costly to do so from the beginning before they're installed.

Gas Conversion Kit

We make it easy to convert your outdoor fire feature from wood-burning to gas with our Crossfire Gas Conversion Kit!


Each kit includes:

  • Revolutionary Crossfire 180K BTU Burner
  • Pan
  • Push Button Spark Ignition Kit
  • Key Valve Kit
  • Lava Rock
  • Paver Bracket
Contact Us To Order

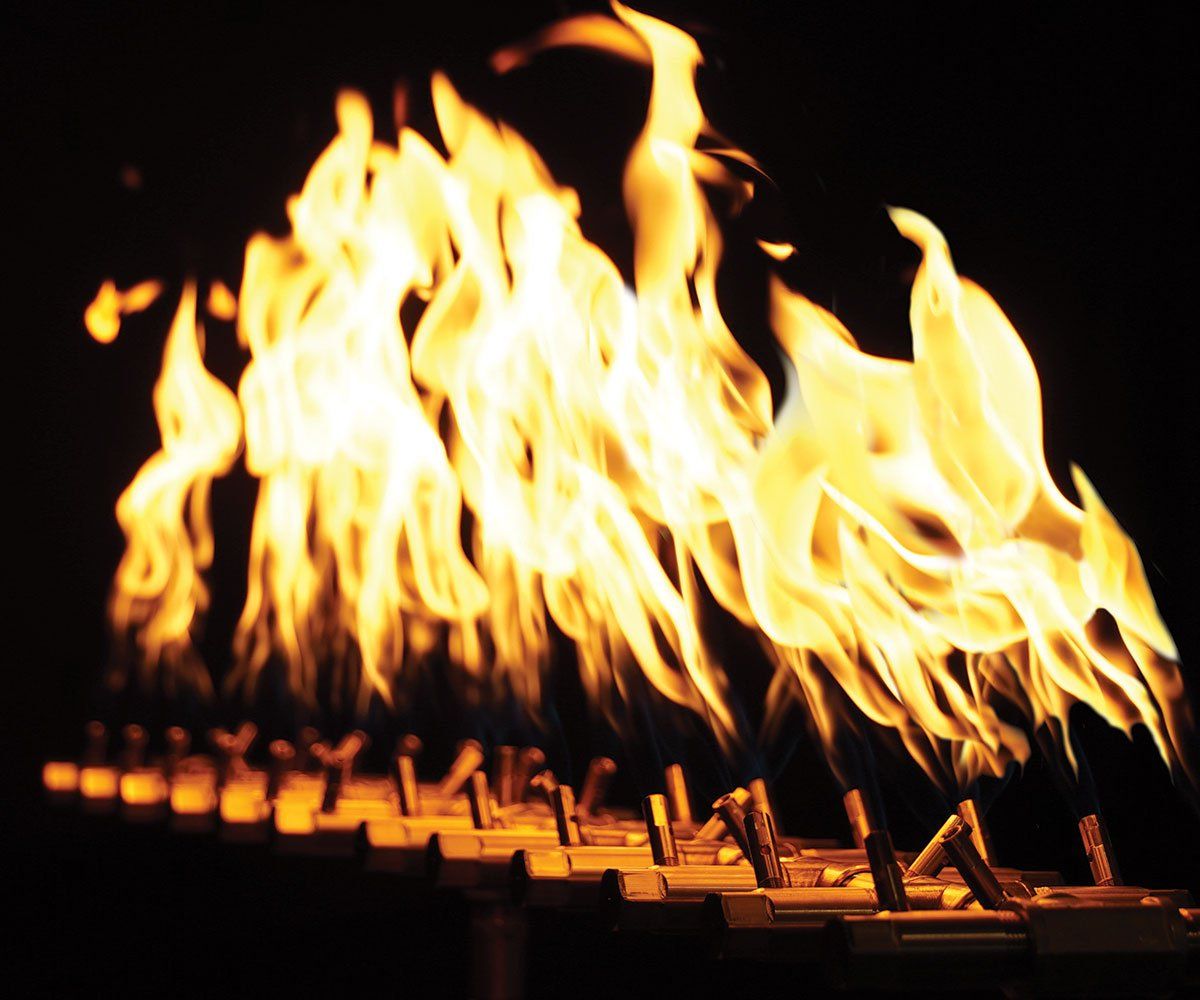

The CROSSFIRE Brass Burner is a revolutionary combination of innovation, design, and performance.  This distinctive fire pit burner utilizes cutting-edge technology to produce a taller, brighter flame.

Twice The Flame

The patented technology behind the Crossfire Brass Burner uses a specific air-to-gas ratio at the point of combustion to produce a taller, brighter, fuller flame that resembles a natural, wood-burning fire.

All Brass Components

All parts and pieces of the Crossfire burner are made from brass.  Unlike other burners made from stainless steel, brass is corrosion resistant and will not rust, which eliminates the need for replacement.

Lifetime Warranty

Backed by one of the strongest lifetime warranties in the industry, the all brass contruction of the Crossfire burner is corrosion resistant, sustainable, and rust-proof.

Made In The USA

Crossfire burners are proudly manufactured and assembled in the USA!

Pipe Sizing for Natural Gas

  • Natural gas flow is given in thousands of BTU/hour
  • Nominal pressure at the burner for natural gas is 3.5" of water column.  (Typical machine supply is 5"-7")
  • Pipe length must include additional length for all fittings.  Add approximately 5 feet of pipe per fitting.
  • EXAMPLE: A machine with a burner that requires 440,000 BTU would need a 1 1/4" pipe for a 20' long run
LENGTH OF PIPE (in feet) 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2938 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 117 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 198 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539

Let's talk about your project!

To request additional information on our Crossfire gas conversion kit, including pricing and delivery availability, please complete and submit the form below and a product specialist will contact you.
